JST 車用連接器規格與認證 – 德通端子

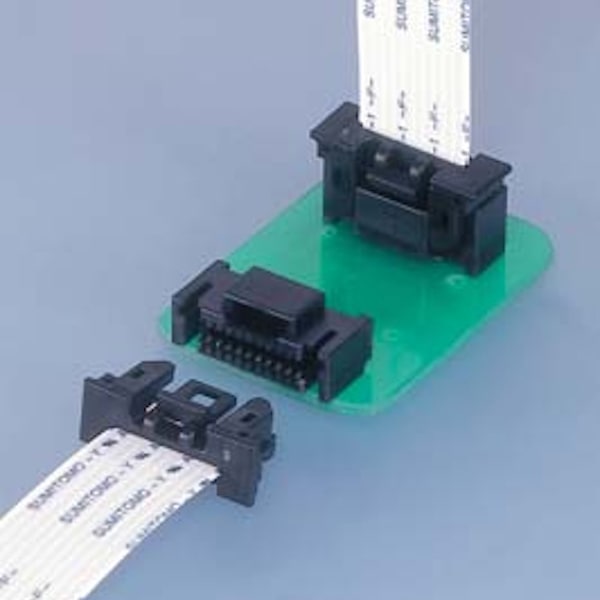

FOX

Pitch	1.25 mm
Current Rating	1.5 A
Voltage Rating	12 V
Temperature Range	-40℃ ~ +90℃
Remarks
Specification	DM/2D/3D

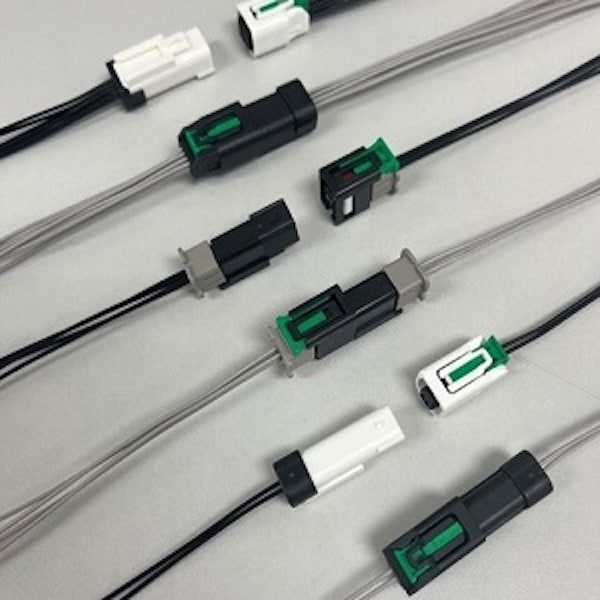

2-WMC

WMC(Waterproof)

Pitch	1.8 mm
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	CPA
Specification	DM/2D/3D

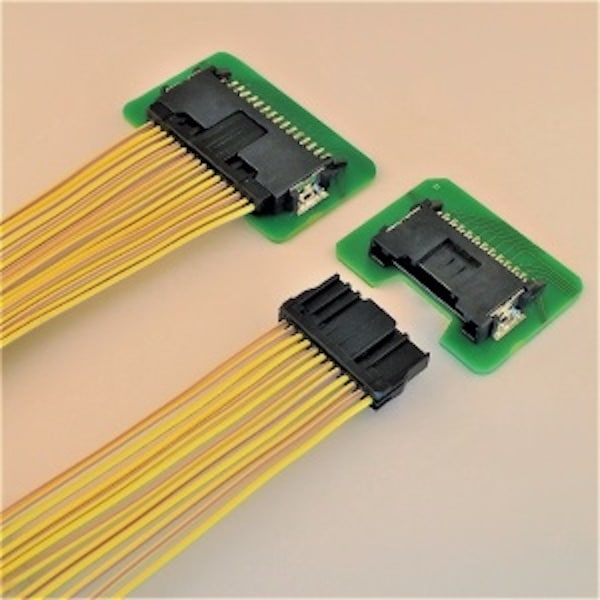

3-CMEC

CMEC

Pitch	2.0 mm
Current Rating	3.0 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	TPA
Specification	DM/2D/3D

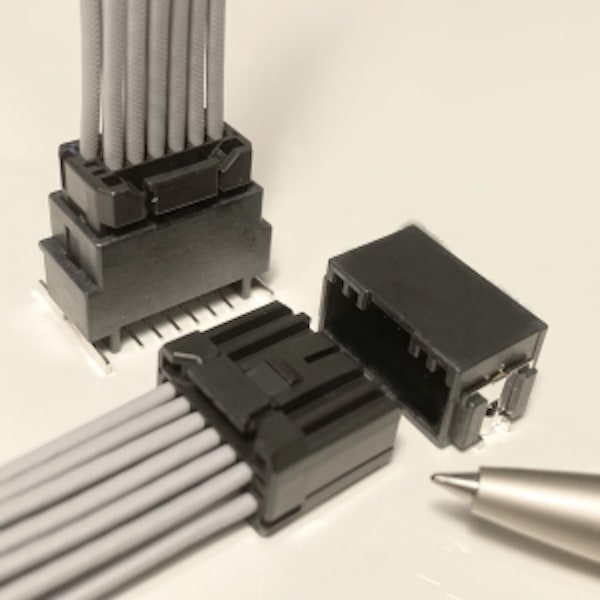

4-CPM

CPM

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks
Specification	DM/2D/3D

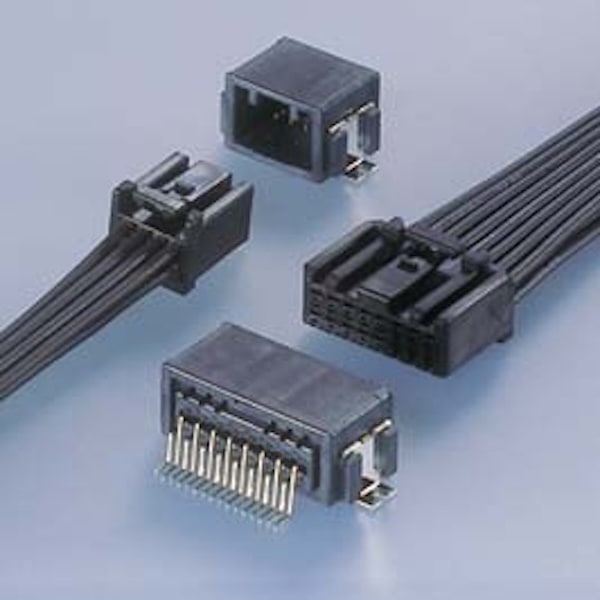

5-CPTp

CPT

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	50 V
Temperature Range	-40℃ ~ +100℃
Remarks
Specification	DM/2D/3D

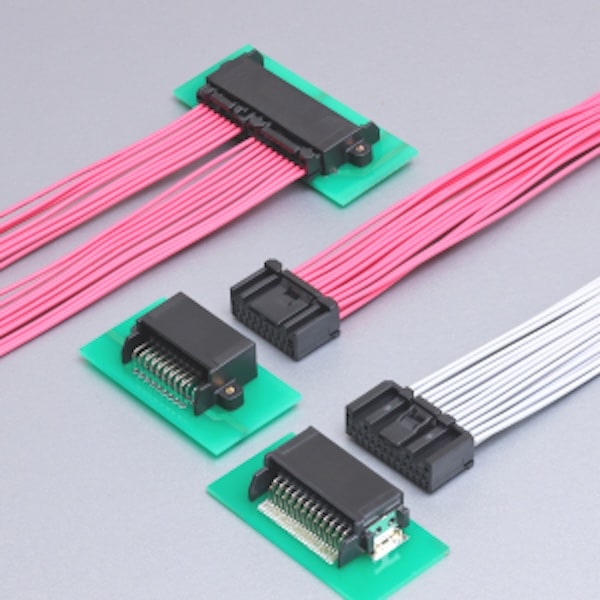

6-MEC

MEC

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +125℃
Remarks
Specification	DM/2D/3D

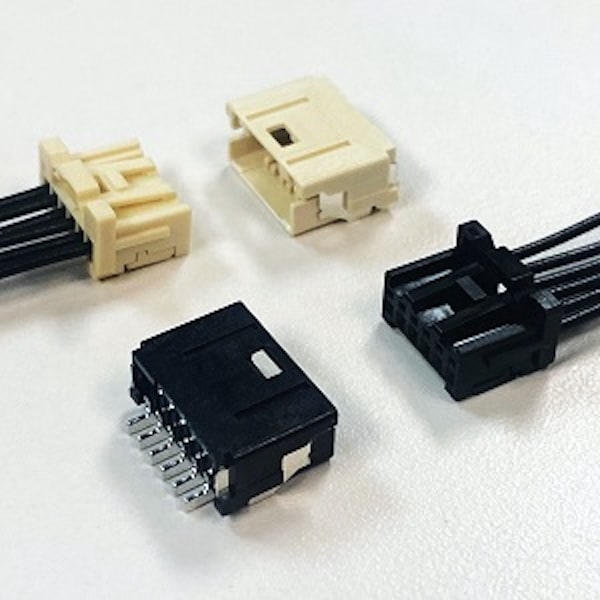

7-MLH

MLH

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +100℃
Remarks	TPA
Specification	DM/2D/3D

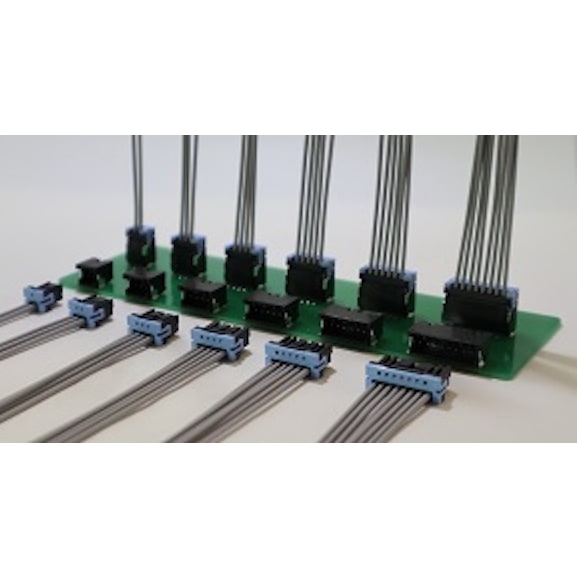

8-PAMU

PAMU

Pitch	2.0 mm
Current Rating	1~3 A
Voltage Rating
Temperature Range	-40℃ ~ +125℃
Remarks
Specification	DM/2D/3D

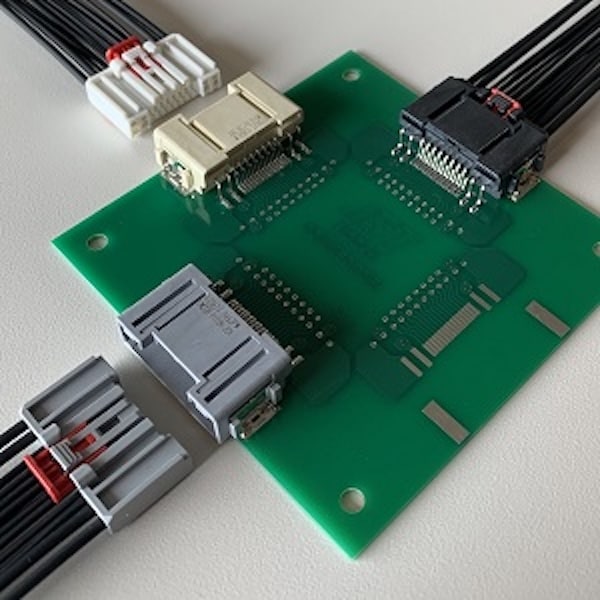

9-PICO-H

PICO-H®

Pitch	2.0 mm
Current Rating	5~14 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

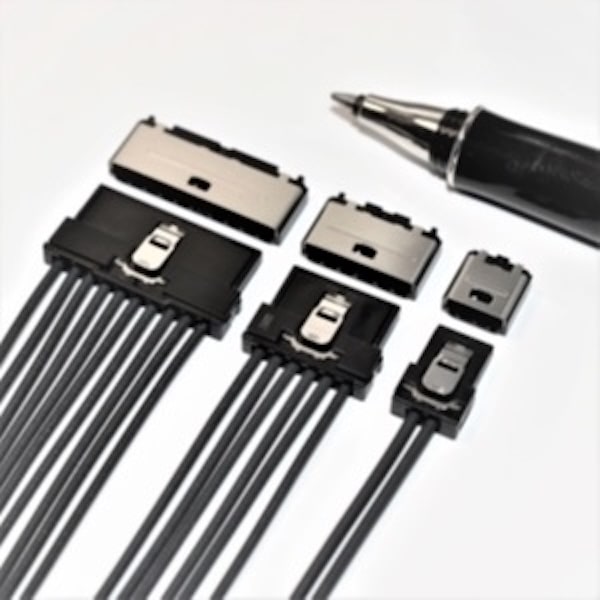

10-ULH

ULH

Pitch	2.0 mm
Current Rating	5 A
Voltage Rating	100 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

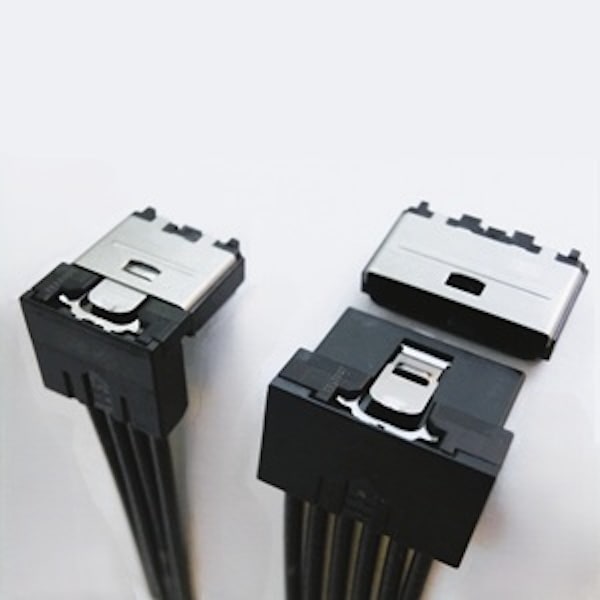

11-ULH-RA_DOWN

ULH(R/A-Down)

Pitch	2.0 mm
Current Rating	5 A
Voltage Rating	100 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

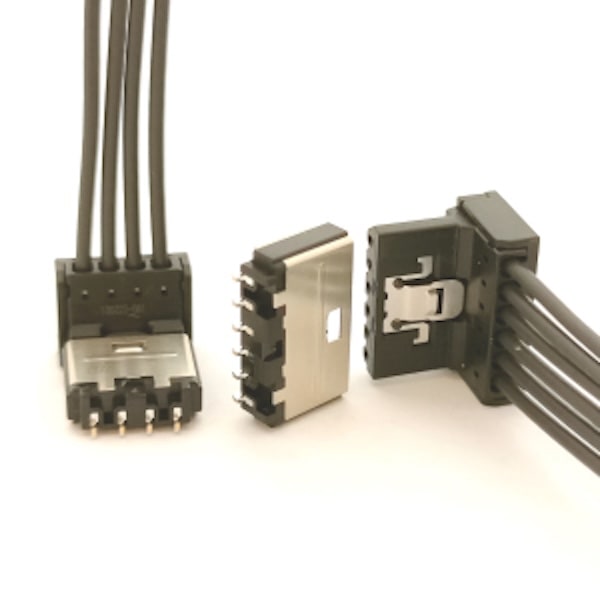

12-ULH-RA_UP

ULH(R/A-Up)

Pitch	2.0 mm
Current Rating	5 A
Voltage Rating	100 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

13-ULH-eCPA

ULH(eCPA)

Pitch	2.0 mm
Current Rating	5 A
Voltage Rating	100 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

14-ULH-FLANGE

ULH(Flange)

Pitch	2.0 mm
Current Rating	5 A
Voltage Rating	100 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR-2 & LV214
Specification	DM/2D/3D

15-WMCB

WMCB

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	CPA
Specification	DM/2D/3D

16-BMSC

BMSC

Pitch	2.2 mm
Current Rating	5 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks
Specification	DM/2D/3D

17-HICp

HIC

Pitch	2.2 mm
Current Rating	5 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +100℃
Remarks	Air Bag & CPA
Specification	DM/2D/3D

18-RHU

RHU

Pitch	2.2 mm
Current Rating	5~25 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	CPA
Specification	DM/2D/3D

19-SHC

SHC

Pitch	2.2 mm
Current Rating	7 A
Voltage Rating	50 V
Temperature Range	-40℃ ~ +105℃
Remarks
Specification	DM/2D/3D

20-JIA

JIA

Pitch	2.5 mm
Current Rating	5~15 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +120℃
Remarks
Specification	DM/2D/3D

21-AITp

AIT

Pitch	2.54 mm
Current Rating	7 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR&CPA&TPA
Specification	DM/2D/3D

22-ATLF

ATLF

Pitch	2.54 mm
Current Rating	5 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	CPA&ISL TPA
Specification	DM/2D/3D

23-ATSS

ATSS

Pitch	2.54 mm
Current Rating	3~7 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	USCAR
Specification	DM/2D/3D

24-HCH

HCH

Pitch	2.54 mm
Current Rating	5 A
Voltage Rating	50 V
Temperature Range	-40℃ ~ +105℃
Remarks
Specification	DM/2D/3D

25-HCMp

HCM

Pitch	2.54 mm
Current Rating	5 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +100℃
Remarks	CPA
Specification	DM/2D/3D

26-HSDP

HSDP

Pitch	2.54 mm
Current Rating	5~14 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +85℃
Remarks	TPA
Specification	DM/2D/3D

27-RAD

RAD

Pitch	2.54 mm
Current Rating	5~25 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +85℃
Remarks	TPA
Specification	DM/2D/3D

28-EVZ2

EVZ2

Pitch	2.55 mm
Current Rating	5 A
Voltage Rating
Temperature Range	-40℃ ~ +125℃
Remarks	Wire-to-Wire
Specification	DM/2D/3D

29-TCUD

TCUD

Pitch	2.55 mm
Current Rating	5~7 A
Voltage Rating
Temperature Range	-40℃ ~ +125℃
Remarks
Specification	DM/2D/3D

30-BCC

BCC

Pitch	3.2 mm
Current Rating	15 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +85℃
Remarks	TPA
Specification	DM/2D/3D

31-TLDR

TLDR

Pitch	3.5 mm
Current Rating	5 A
Voltage Rating	600 V
Temperature Range	-40℃ ~ +125℃
Remarks	CPA&TLC
Specification	DM/2D/3D

32-MSAI

MSAI

Pitch	4.0 mm
Current Rating	5 A
Voltage Rating
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR / Sensor
Specification	DM/2D/3D

33-ACA

ACA

Pitch	2.54 mm
Current Rating	3 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +100℃
Remarks
Specification	DM/2D/3D

34-AIT-II

AIT-II

Pitch	2.54 mm
Current Rating	7 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +105℃
Remarks	TPA
Specification	DM/2D/3D

35-ARV

ARV

Pitch	2.54 mm
Current Rating	5 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	TPA
Specification	DM/2D/3D

36-ASG

ASG(Hybrid Sealed)

Pitch	N/A
Current Rating	7~40 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	USCAR / ABS
Specification	DM/2D/3D

37-ASU-Angle type

ASU(Angle)

Pitch	1.25 mm
Current Rating	1 A
Voltage Rating	30 V
Temperature Range	-40℃ ~ +105℃
Remarks	HMI , Antenna
Specification	DM/2D/3D

38-ASU-Straight type

ASU(Straight)

Pitch	1.25 mm
Current Rating	1 A
Voltage Rating	30 V
Temperature Range	-40℃ ~ +105℃
Remarks	HMI , Antenna
Specification	DM/2D/3D

39-ATL

ATL

Pitch	2.54 mm
Current Rating	5 A
Voltage Rating	14 V
Temperature Range	-40℃ ~ +125℃
Remarks	TPA
Specification	DM/2D/3D

40-CPI

CPI

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	50 V
Temperature Range	-40℃ ~ +100℃
Remarks
Specification	DM/2D/3D

41-EA1p

EA1

Pitch	Coaxial
Current Rating	1 A
Voltage Rating	250 V
Temperature Range	-40℃ ~ +85℃
Remarks	High Frequency
Specification	DM/2D/3D

42-EA2-SIDEGND

EA2(GND spring)

Pitch	Coaxial
Current Rating	1 A
Voltage Rating	250 V
Temperature Range	-40℃ ~ +85℃
Remarks	Antenna
Specification	DM/2D/3D

43-EA2-Angle type

EA2(Angle)

Pitch	Coaxial
Current Rating	1 A
Voltage Rating	250 V
Temperature Range	-40℃ ~ +85℃
Remarks	Antenna
Specification	DM/2D/3D

44-EA2-Straight type

EA2(Straight)

Pitch	Coaxial
Current Rating	1 A
Voltage Rating	250 V
Temperature Range	-40℃ ~ +85℃
Remarks	Antenna
Specification	DM/2D/3D

45-JRE-Wire-to-Board

JRE(W-T-B)

Pitch	FAKRA
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	Open Alliance TC9 (1000BASE-T1),CPA
Specification	DM/2D/3D

46-JRE-Wire-to-Wire

JRE(W-T-W)

Pitch	FAKRA
Current Rating	3 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	Open Alliance TC9 (1000BASE-T1),CPA
Specification	DM/2D/3D

47-JRF-Wire-to-Board

JRF(W-T-B)

Pitch	FAKRA
Current Rating	1 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	USCAR
Specification	DM/2D/3D

48-JRF-Wire-to-Wire

JRF(W-T-W)

Pitch	FAKRA
Current Rating	1 A
Voltage Rating
Temperature Range	-40℃ ~ +105℃
Remarks	ISO & USCAR
Specification	DM/2D/3D

49-HIE

HIE

Pitch	HDMI
Current Rating	0.5 A
Voltage Rating	40 V
Temperature Range	-40℃ ~ +105℃
Remarks	HDMI E , Antenna
Specification	DM/2D/3D

50-ZRO

ZRO

Pitch	2.55 mm
Current Rating	5~7 A
Voltage Rating	50 V
Temperature Range	-40℃ ~ +120℃
Remarks
Specification	DM/2D/3D
