JST連接器

JST Wire-to-Board 連接器

規格與型號

1-XSR

XSR

Pitch	0.6 mm
Current Rating	0.2 A
Voltage Rating	30 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

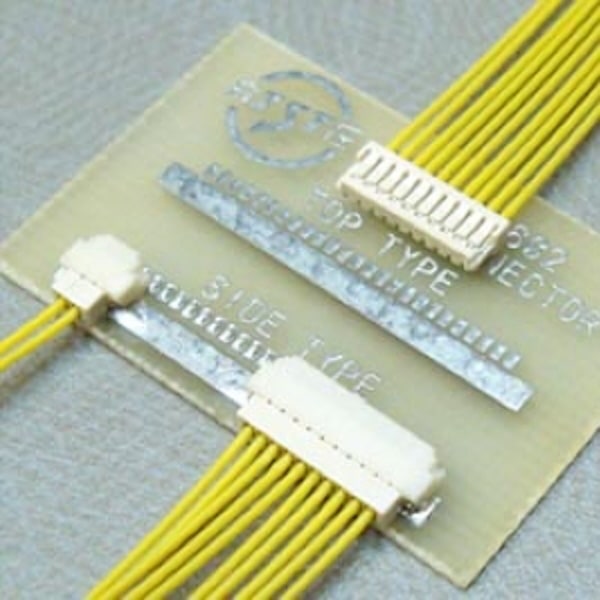

SUH

Pitch	0.8 mm
Current Rating	1 A
Voltage Rating	30 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

SUR

Pitch	0.8 mm
Current Rating	0.5 A/0.2 A
Voltage Rating	30 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

LBT

Pitch	1.0 mm
Current Rating	0.5 A(Signal) 8 A(Power)
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

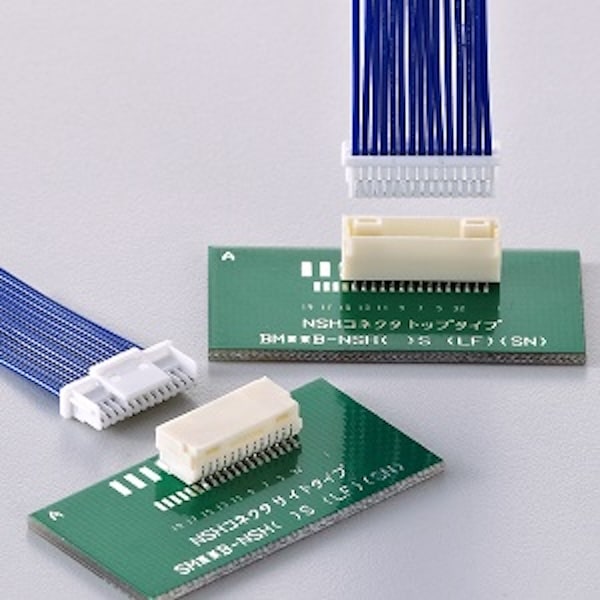

NSH

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

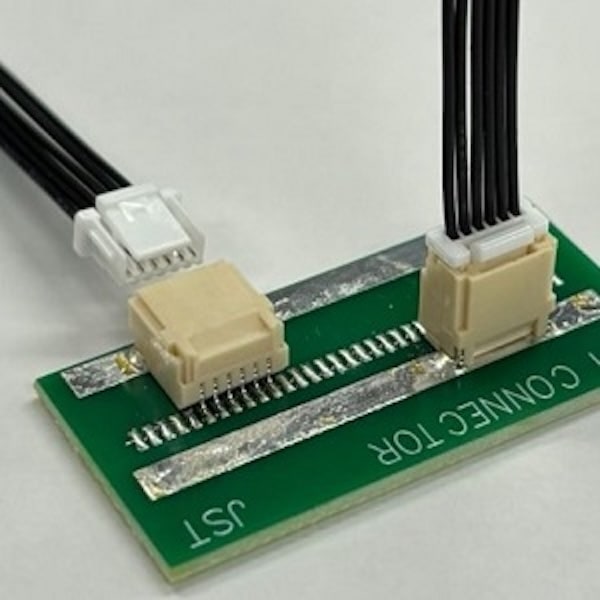

NSH(Potting)

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

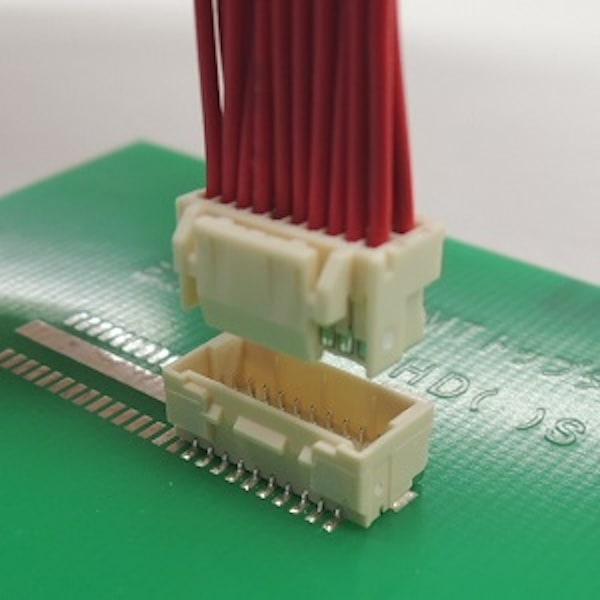

NSHD(DualRow)

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

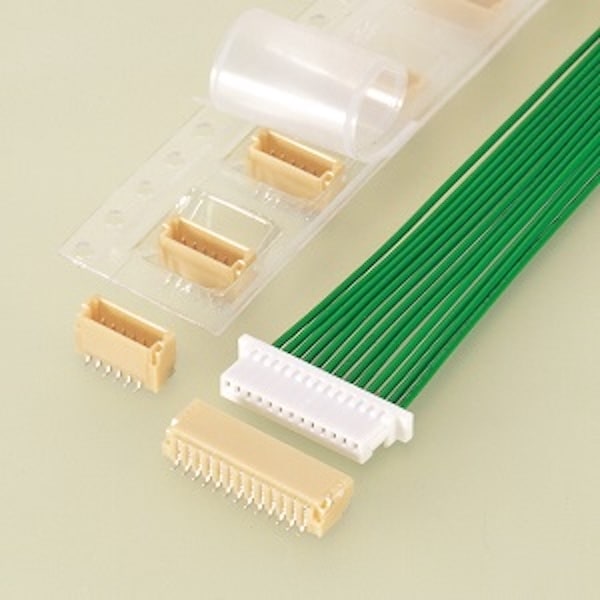

SH

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

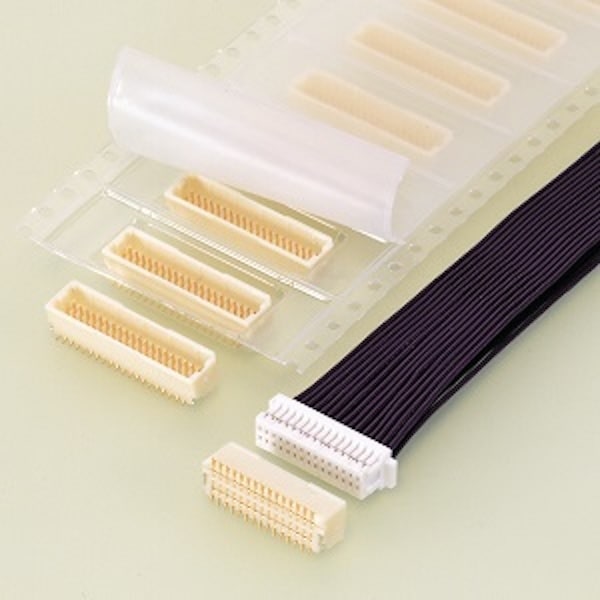

SHD(DualRow)

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

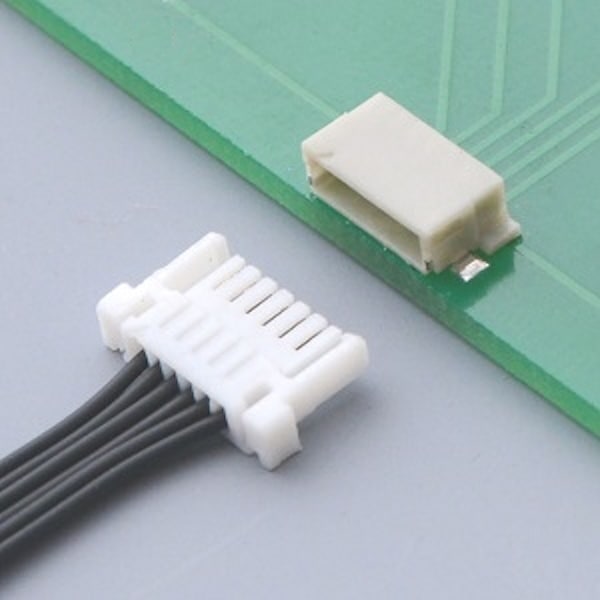

SHJ

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	125 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

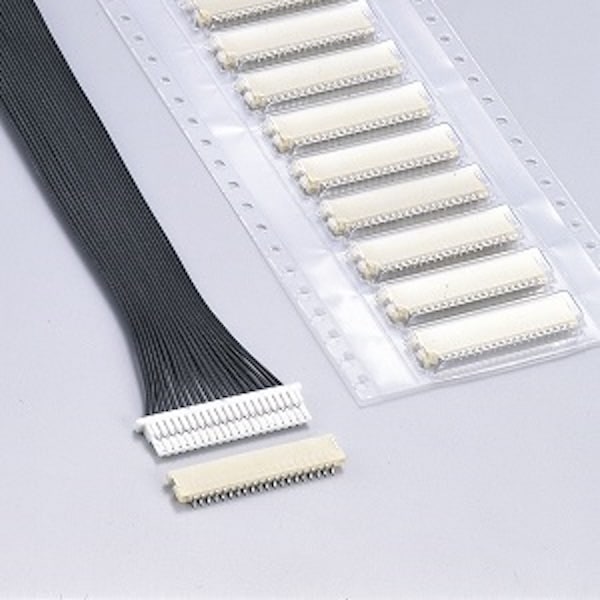

SHL

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

JST Wire-to-Board 連接器規格與型號 – 德通端子

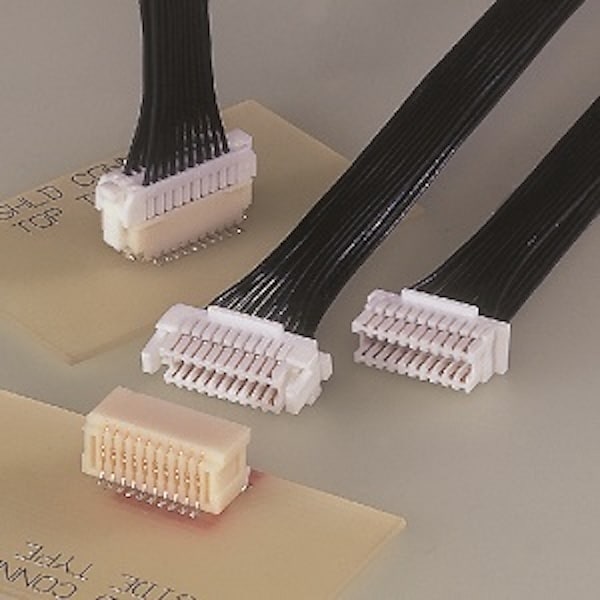

SHLD(DualRow)

Pitch	1.0 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

13-ACH

ACH

Pitch	1.2 mm
Current Rating	1.5~2 A
Voltage Rating	50 V
Specification	DM/2D/3D

14-ACHF

ACHF

Pitch	1.2 mm
Current Rating	1~2.5 A
Voltage Rating	50 V
Specification	DM/2D/3D

15-GH

GH

Pitch	1.25 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

16-GHD-AU

GHD(DualRow)

Pitch	1.25 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

17-ADH

ADH

Pitch	1.3 mm
Current Rating	1~3 A
Voltage Rating	30 V
Specification	DM/2D/3D

18-ZE

ZE

Pitch	1.5 mm
Current Rating	2 A
Voltage Rating	100 V
Specification	DM/2D/3D

19-ZH

ZH

Pitch	1.5 mm
Current Rating	1 A
Voltage Rating	50 V
Specification	DM/2D/3D

20-ZND-WB

ZND(DualRow)

Pitch	1.5 mm
Current Rating	2 A
Voltage Rating	100 V
Specification	DM/2D/3D

21-ZPD

ZPD(DualRow)

Pitch	1.5 mm
Current Rating	1.5~2 A
Voltage Rating	100 V
Specification	DM/2D/3D

22-AUH

AUH

Pitch	1.7 mm
Current Rating	1 A(Signal) 5 A(Power)
Voltage Rating	30 V
Specification	DM/2D/3D

23-LEA

LEA(LED Lighting)

Pitch	1.8 mm
Current Rating	3 A
Voltage Rating	300 V
Specification	DM/2D/3D

24-SFH

SFH

Pitch	1.8 mm
Current Rating	4 A
Voltage Rating	350 V
Specification	DM/2D/3D

25-SFK

SFK

Pitch	1.8 mm
Current Rating	4 A
Voltage Rating	350 V
Specification	DM/2D/3D

26-JWPF-WB

JWPF(Waterproof)

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	100 V
Specification	DM/2D/3D

27-PA

PA(PA family)

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	100~250 V
Specification	DM/2D/3D

28-PAD

PAD(DualRow)

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

29-PH

PH

Pitch	2.0 mm
Current Rating	2 A
Voltage Rating	100 V
Specification	DM/2D/3D

30-PHD

PHD(DualRow)

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

31-PUD

PUD(DualRow)

Pitch	2.0 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

32-EH

EH

Pitch	2.5 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

33-LEX

LEX(LED Lighting)

Pitch	2.5 mm
Current Rating	3 A
Voltage Rating	300 V
Specification	DM/2D/3D

34-XA-WB

XA

Pitch	2.5 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

35-XAD-WB

XAD(DualRow)

Pitch	2.5 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

36-XH

XH

Pitch	2.5 mm
Current Rating	3 A
Voltage Rating	250 V
Specification	DM/2D/3D

37-VH

VH

Pitch	3.96 mm
Current Rating	7~10 A
Voltage Rating	250 V
Specification	DM/2D/3D

38-LEB

LEB(LED Lighting)

Pitch	4.0 mm
Current Rating	3 A
Voltage Rating	300 V
Specification	DM/2D/3D

39-PSI

PSI

Pitch	4.0 mm
Current Rating	3~12 A
Voltage Rating	300 V
Specification	DM/2D/3D

40-WPJ-WB

WPJ(Waterproof)

Pitch	5.0 mm
Current Rating	7 A
Voltage Rating	300 V
Specification	DM/2D/3D

41-XL-WB

XL

Pitch	5.0 mm
Current Rating	1~10 A
Voltage Rating	150 V
Specification	DM/2D/3D

42-VL-WB

VL

Pitch	6.2 mm
Current Rating	3~20 A
Voltage Rating	600 V
Specification	DM/2D/3D

43-VYH

VYH

Pitch	6.5 mm
Current Rating	2~15 A
Voltage Rating	300 V
Specification	DM/2D/3D

44-VA

VA

Pitch	7.92 mm
Current Rating	7 A
Voltage Rating	250 V
Specification	DM/2D/3D
